Steel coils are among the most unforgiving loads in any material handling environment. They are heavy, dense, and completely cylindrical, which means they have no flat surface to rest a clamp against and no natural grip point that improvised rigging can use reliably. Drop one, and the damage extends well beyond the coil itself. Ask workers to handle them manually, and you are accepting injury risk that no production target justifies. Coil tongs exist because the physics of the problem demand a purpose-built solution. This article covers how coil tong technology works, what separates a well-engineered tong from an inadequate one, and why the motorized design has become the standard across steel, automotive, and transport operations.
A coil sitting on the floor looks stable enough. Put it in motion on a crane hook with improvised rigging, and that stability disappears fast. The cylindrical shape means the centre of gravity shifts with any change in orientation. Chains and slings that were fine for a flat load become unreliable quickly when the load can roll.
Beyond the safety problem, there is a product quality problem. Steel coils, particularly cold-rolled and processed coils destined for automotive stamping or precision manufacturing, have surface finishes that scratch and dent easily. Contact with metal rigging hardware during a poorly controlled lift leaves marks that downstream processes cannot always remedy. In industries where surface quality is part of the specification, a damaged coil is often a scrapped coil.
Coil lifting equipment addresses both problems at once. A tong grips the coil through a controlled mechanical mechanism, maintains a secure hold throughout the lift, and uses padded contact surfaces that protect the coil face during handling. The load stays stable. The surface stays intact.
The motorized coil tong is an electromechanical device, which distinguishes it meaningfully from manual or gravity-actuated tong designs.
The arms open and close through a motor-driven mechanism rather than through the operator manually positioning the tong or relying on gravity to actuate the grip. That motorized arm drive gives the operator precise control over the opening width before the tong contacts the coil, which matters when working with coils of varying diameters across a shift.
RUD India's motorized coil tong uses either a trapezoidal screw drive or a rack and pinion drive, depending on the application requirement. The trapezoidal screw drive offers a self-locking characteristic wherein the arms hold their position without requiring continuous motor engagement, which means the grip does not loosen if power is interrupted mid-lift. The rack and pinion drive offers a low gear ratio that gives very fine positional control over arm movement. Both are solid engineering choices; the selection depends on how the tong gets used in practice.

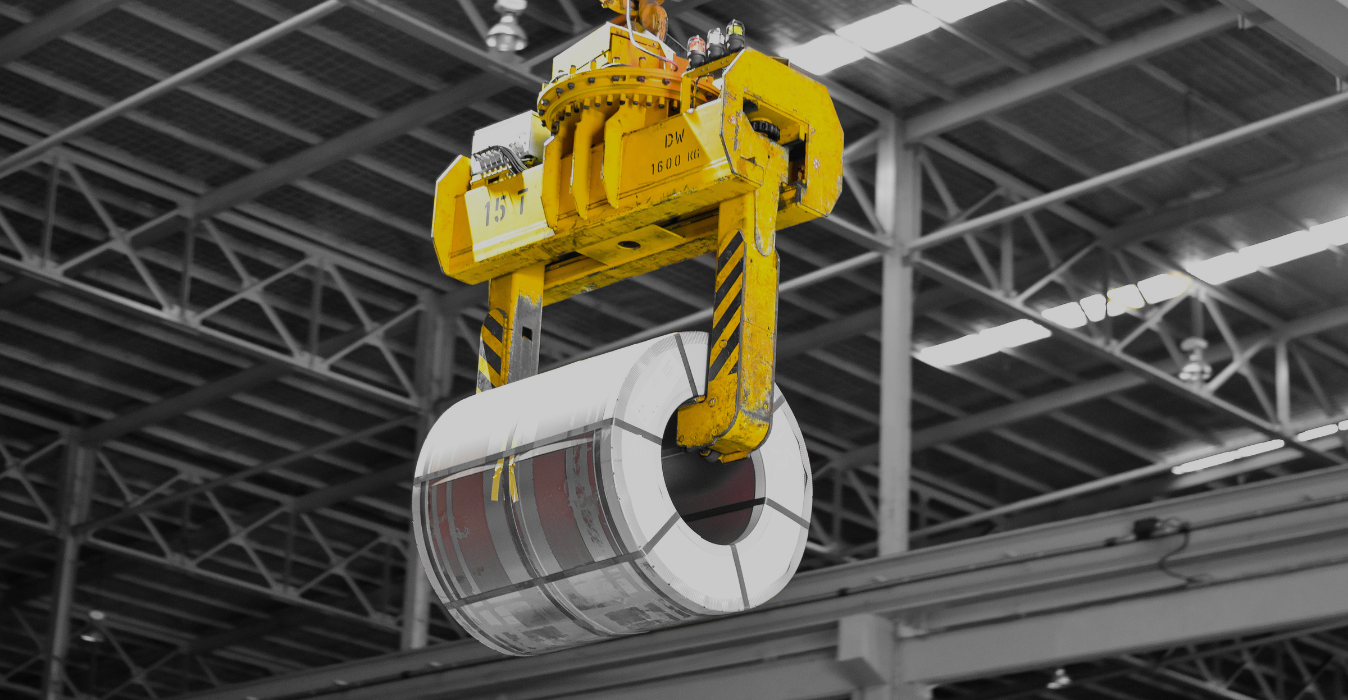

The tong handles coils in the horizontal position. Curved lifting pads make contact with the coil surface, distributing the load across a larger contact area and protecting the coil from point-load damage. High-impact toe rollers sit at the bottom of the arms specifically to prevent the tong foot from contacting the coil as the tong positions for a lift, another detail that matters for surface-sensitive coils.
Two limit switches on the motorized coil tong address two specific failure modes that manual designs cannot guard against.
The anti-clamp limit switch stops the arms from closing beyond the coil surface. Without this, an operator who holds the close control slightly too long can over-clamp, applying more pressure to the coil than the surface can tolerate. The switch prevents that from happening automatically. The operator does not have to judge the stopping point by feel.
The signal-off limit switch prevents inadvertent arm opening during a lift. Once the tong is loaded and lifted clear of the ground, this switch disables the open command. Arms cannot be accidentally opened while a coil is suspended. That is a single line in a specification sheet that represents the difference between a routine lift and a serious incident.
Both switches operate independently of the operator. They do not require the operator to remember a procedure or consciously activate a safety mode. They work because the tong detects the situation and responds. That kind of engineered safety is worth paying attention to when comparing coil lifting devices.
Hot-rolled coils, cold-rolled coils, and special coils all have different surface characteristics and dimensional tolerances. A tong designed only for hot-rolled material, where surface sensitivity is lower, may not be appropriate for cold-rolled or coated material going into an automotive supply chain.
RUD India's motorized coil tong handles all three coil types. The curved pads and toe roller design protect surface-sensitive coils during contact. Optional coil arm protection in aluminium or Hardox can be specified for applications where even the pad material needs to be carefully selected to avoid surface transfer or contamination.
The optional photo eye accessory detects the coil inner diameter, which is useful in automated or semi-automated handling environments where the operator cannot always visually confirm positioning before closing the arms. The encoder system provides precise motion control data, which becomes relevant in operations that log handling parameters or integrate the tong into a larger crane management system.
The steel industry is the most obvious application. Steel mills and processing plants move coils continuously between rolling lines, inspection stations, slitting lines, and despatch bays. The volumes are high and the coils are heavy. Handling efficiency directly affects mill throughput, so the speed and reliability of coil lifting equipment matters operationally, not just from a safety standpoint.
The automotive industry is equally dependent. Coils arrive at stamping plants and go directly into press lines. Mishandled coils that arrive with surface damage or deformation create production problems that ripple through the schedule. Motorized tongs used in automotive coil handling are often integrated with overhead cranes running on defined paths between unloading docks and press-side coil saddles.
Transport and logistics operations load and unload coils onto trucks, rail wagons, and ships. These are environments where the equipment moves, the load orientation shifts, and the handling conditions are less controlled than inside a processing plant. A tong with reliable motorized grip and positive limit switch protection is more appropriate here than a purely manual or gravity-actuated design.
Four inputs matter most when specifying a coil tong: the coil weight, the coil outer diameter range, the inner diameter range, and the surface finish requirements.
Weight determines the rated capacity needed. Always specify with a margin above the heaviest coil in the current product mix, and above the heaviest coil the facility might handle in the next few years if production plans are likely to change.
Diameter range determines arm travel requirements. A facility handling coils with significant variation in outer diameter needs a tong with sufficient arm travel to accommodate both the smallest and largest coil in the range without requiring a different tong for each size.
Surface finish requirements determine pad material, arm protection options, and whether additional accessories like the photo eye or encoder system are worth specifying. For standard hot-rolled coils, the base configuration is typically adequate. For cold-rolled, galvanised, or pre-painted coils, arm protection and pad material selection deserve more careful attention.
RUD India configures motorized coil tongs to the specific requirements of the customer's operation. The standard certifications cover ASME BTH-1 Design Category B and service classes up to over 2,000,000 load cycles, which provides a clear indication of how these tongs are built for sustained industrial use rather than occasional lifting.
A coil tong is not interchangeable with general-purpose lifting equipment. Steel coil handling has specific demands that generic rigging cannot meet reliably, for safety, for coil protection, and for the operational consistency that high-volume coil handling environments require. The motorized coil tong answers those demands with engineered grip control, purpose-built safety mechanisms, and contact surface design that protects the coil throughout the lift. RUD India's motorized coil tongs cover hot-rolled, cold-rolled, and special coil applications, built to ASME and DIN standards with a range of accessories that adapt the base design to specific operational needs. For steel plants, automotive suppliers, and logistics operations that move heavy coils daily, it is the right piece of coil lifting equipment for the job.
