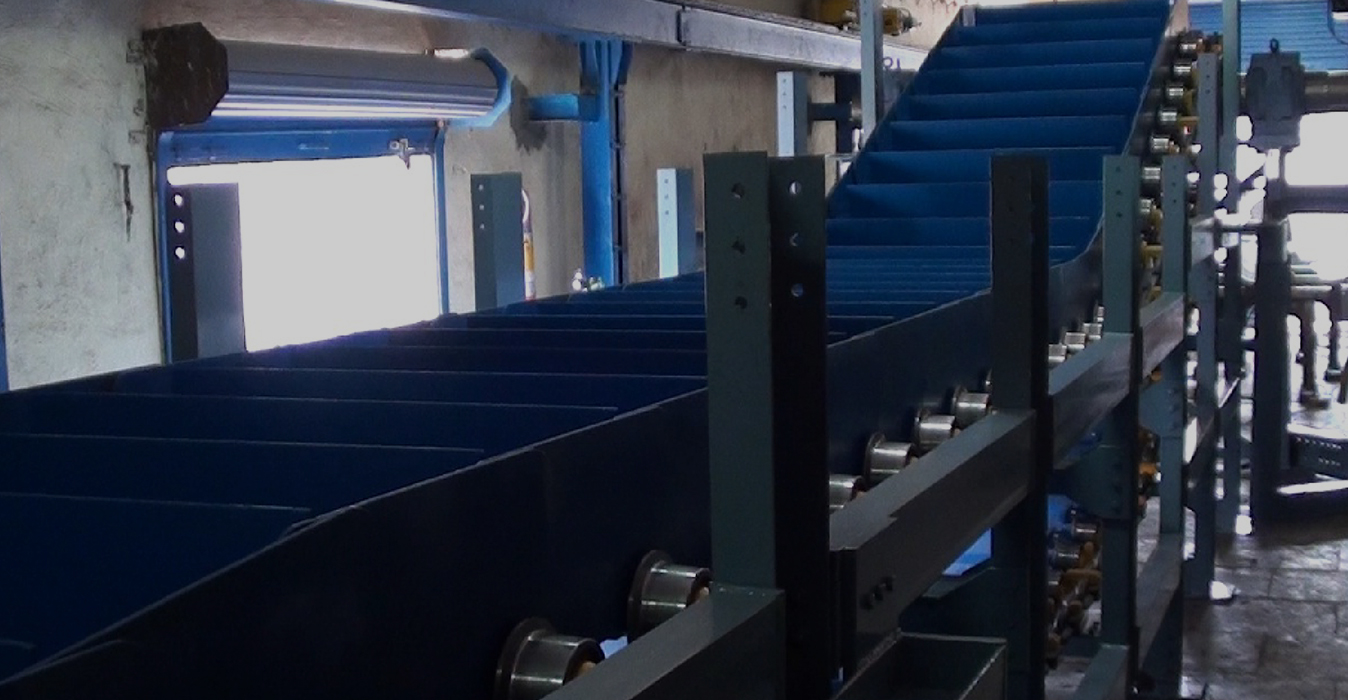

Customizing Apron Feeders for Your Waste-to-Energy Plant: Tips from RUD India

The feed system is a critical component in any waste-to-energy plant. A well configured feeder ensures steady combustion, protects downstream equipment and reduces unplanned downtime. The RUD Apron Feeder provides the mechanical robustness and sealing required to handle mixed municipal waste, refuse derived fuel and other demanding feed streams while simplifying maintenance and improving plant availability.

What makes an Apron Feeder useful?

An apron feeder acts as a heavy duty bulk material handling conveyor in which overlapping steel plates travel directly on a resilient chain. This direct-ride arrangement reduces moving parts within the load path and creates a wear resistant carrying surface that tolerates sharp fragments and abrasive particles. Compared with belt or roller systems, the apron feeder delivers predictable component life and lower maintenance frequency.

Defining material and thermal requirements

Effective customization begins by detailing the feed characteristics. Capture particle size distribution, maximum lump size, moisture content and bulk density. These parameters determine plate thickness, hinge reinforcement and chain class. If the process exposes the feeder to elevated temperatures, treat the unit as a high temperature conveyor and specify heat tolerant plates, seals and lubricants accordingly.

Leverage modularity for retrofit and flexibility

RUD supplies the apron feeder as a modular conveyor system with straight, inclined and curved sections. Modular segments reduce on-site welding and allow faster installation. They also simplify future reconfiguration when plant layouts change or when a line moves between waste handling and recycling material streams.

Practical specification and commissioning advice

• Quantify feed and temperature ranges to select appropriate plate metallurgy and chain class.
• Size plate width and drive capacity to prevent bridging during variable feed conditions.
• Provide removable covers, safe lifting points and clear access lanes for maintenance.
• Integrate trommels, magnets and tramp metal detection upstream to reduce impact damage and unplanned stops.
• Use metering and feed forward controls to match furnace demand and stabilise throughput.

Maintenance and spares planning

A focused spare parts kit and a simple inspection routine reduce outages and total cost of ownership. Maintain critical spares such as apron plates, sealed link chain sections and drive components. Inspect hinges and chain stretch at scheduled intervals and replace components proactively. RUD India supports on-site surveys, commissioning and tailored spare kits to align with duty cycles.

Power, drives and controls

Drive selection should accommodate frequent starts, shock loads and occasional reverse operation. Variable frequency drives provide fine control of feed rate and can reduce peak current draw. Design bearing housings and drive mounts for easy access so routine lubrication and adjustments do not require extended shutdowns.

Handling mixed feeds and recycling material

Handling mixed feeds and recycling material requires specific access and inspection features. For lines that occasionally accept segregated recyclables, provide inspection ports and local removal access to extract contaminants without full shutdown. Reinforced plates and higher chain classes minimise damage from unexpected tramp metal.

Lifecycle and value

Apron feeders typically offer lower lifecycle cost than roller based alternatives. The simpler mechanical design reduces the number of failure points, which improves mean time between repairs and lowers maintenance labour. Include projected downtime costs and spare consumption when comparing feeder options to reflect true operating expense.

Contact RUD India for Modular Apron Feeders

Early engagement with RUD India ensures the feeder is specified to match the actual feed mix, thermal conditions and site constraints. RUD engineers can advise on plate chemistry, hinge reinforcement and spare parts strategies, and they provide installation support and operator training to secure long term performance.
