Every minute a crane sits idle costs money. In high-throughput facilities, steel plants, fabrication yards, and port terminals, that cost stacks up fast. And a surprising chunk of that idle time doesn't stem from mechanical failure or operator error. It comes from load repositioning.
When a heavy or asymmetrical load touches down at the wrong angle, the options narrow quickly: either manual workers step in to push or guide it into position, which is slow and risky, or the crane lifts again and attempts the placement from a fresh angle. Neither option is efficient. Neither option scales.
That's exactly where motorized spreader beam rotation changes the equation. By enabling full load rotation under live crane load, this below-the-hook lifting device removes the repositioning delay from the cycle entirely. The load arrives at the setdown point already facing the right direction. No extra lifts. No manual correction. No waiting.

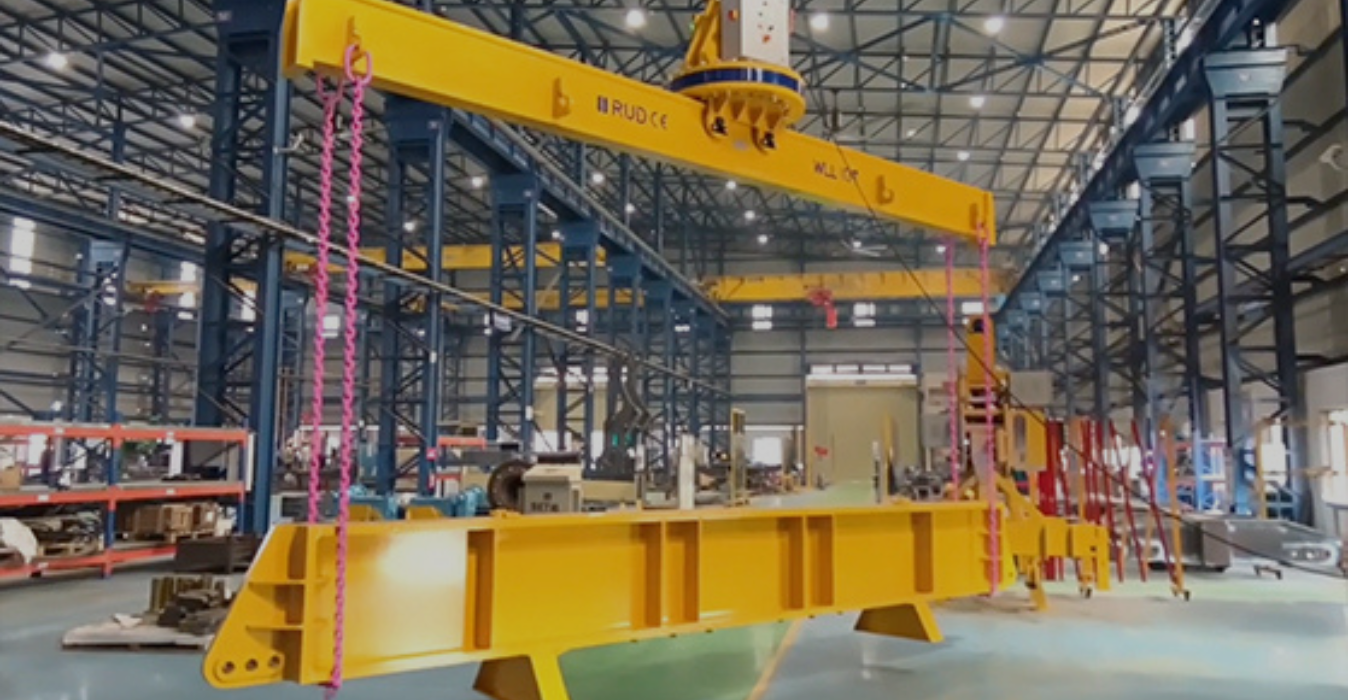

RUD India's Motorized Spreader Beam integrates high-torque electric motors, precision gearboxes, and heavy-duty drive chains to deliver smooth, controlled rotation of up to 360 degrees, even with the load suspended under its full working weight.
In a typical crane operation involving long structural members, transformer units, or large fabricated components, the load rarely lands at exactly the right angle on the first attempt. Orientation matters. Whether a steel section needs to align with a welding fixture, a precast beam needs to drop into a receiver slot, or a plate needs to go flat onto a storage rack, the angular position of the load directly determines how fast the cycle completes.
With a conventional lifting beam, reorientation means setting the load down, rigging it again at a new attachment angle, and repeating the lift. Some facilities rely on tag lines to physically pull the load into position while it's airborne. That works, but it introduces safety risks and still burns cycle time. More importantly, it treats repositioning as a normal part of the operation when it doesn't have to be.
A rotating spreader beam removes that step entirely. Operators rotate the suspended load to the required angle before lowering it. In high-cycle environments, that single change can knock several minutes off each lift, compounding significantly over a full production shift.
Also, Read: Spreader Vs Lifting Beams
RUD India's motorized rotating lifting beam pairs high-torque electric motors with precision gearboxes and heavy-duty drive chains. Together, these components generate the torque necessary to rotate even large, unbalanced loads in a controlled, predictable arc.
The emphasis here is on smooth. Jerky rotation under a suspended crane hook creates pendulum effects that operators struggle to manage and that carry real injury risk. Controlled motor speed combined with the drive chain system keeps the rotation steady. Operators can move the load through small, deliberate increments when precision placement calls for it, or through a wider arc when clearances allow.
What makes this genuinely practical is that rotation happens under full suspended load. There's no need to set the load down, detach and reattach slings, or bring in an extra crew. One operator, one control interface, and the load turns to the required position.
Also, Read: What Is a Motorized Spreader Beam?
Any rotating mechanism handling heavy industrial loads needs to hold position without question. RUD India addresses this through integrated fail-safe braking: electromagnetic or electro-hydraulic thruster brakes that engage the moment the operator releases the control or power cuts out.
This matters as much operationally as it does for safety. The load doesn't drift or coast when the operator stops giving input. It stops and holds precisely where the operator left it. That level of positional stability is what lets operators thread loads into tight spaces, align them with assembly fixtures, or stack them accurately, without fighting a tendency to swing or continue rotating.
In practice, this braking system also gives ground crew the confidence to approach the suspended load for final alignment checks. The load stays put.
A practical concern with any new lifting equipment is how smoothly it slots into an existing facility without demanding major rewiring or retraining. RUD India's Motorized Spreader Beam handles this well.
The system supports integration with standard crane pendant controls, so operators already comfortable with overhead crane operations can add rotation commands to their existing workflow without learning a different interface from scratch. For facilities that need greater operator mobility, the system also supports Industrial Radio Remote Control (IRRC), letting operators move freely around the load and control both crane movement and rotation from whatever position offers the best sightline.
This flexibility matters particularly in large fabrication bays where the operator can't always stay directly beneath the load, or in environments where minimising proximity to the suspended load is a safety priority.
Motorized rotating lifting beams earn their cost back fastest in operations where load orientation is critical and cycle volumes run high.
Steel fabrication plants regularly handle long structural sections requiring precise angular placement before welding or assembly. Shipyards move large hull components and machinery modules that need orientation before entering tight compartment openings. Power generation projects deal with transformer banks and generator sets that require rotation before lowering onto foundation pads. Infrastructure projects involving bridge girders, precast concrete beams, or large steel frames face the same challenge on an even bigger scale.
In all these settings, the practical gap between a conventional lifting beam and a spreader beam with rotation isn't just about comfort or convenience. It's about how many productive lift cycles a facility completes per shift.
RUD India fabricates the Motorized Spreader Beam from high-tensile structural steel conforming to IS 2062 Gr.B or ASTM equivalent standards. This material choice delivers an optimal strength-to-weight ratio, which carries direct operational significance: a heavier beam consumes a larger portion of the crane's rated capacity, reducing the headroom for the actual load.
The beam carries a safety factor of 4:1 or 5:1, comfortably above standard industrial lifting equipment requirements. Suspension configurations come in standard fixed lifting eyes, dual hooks, or adjustable pin setups, allowing the beam to interface with most standard crane hook sizes and overhead crane systems already in use.
Crane cycle time is a genuine operational bottleneck in heavy industry, and load repositioning contributes more to lost time than most production teams formally account for. RUD India's motorized spreader beam with 360 degree rotation resolves this directly: the load arrives at the correct orientation, holds its position reliably under fail-safe braking, and the operator retains full control from pickup to setdown.
For facilities that move large, heavy, or asymmetrical loads regularly, the shift to a motorized rotating lifting beam isn't just an equipment upgrade. It's a way to extract more productive cycles from the same crane, the same crew, and the same hours.
To explore the right configuration for your application, reach out to the RUD India team directly.
