Safety Tips and Best Practices for Using C-Hooks in Coil Lifting

A dropped coil during coil lifting operations is not just an error that leads to efficiency loss, it’s a safety hazard. In heavy industries where steel coil lifting hooks handle loads measured in tonnes, the margin for error is essentially zero. Yet many facilities still treat C-Hooks as an afterthought rather than a critical piece of industrial lifting equipment. If your operations involve coil handling, this article is worth your full attention.

Using a C-Hook for coil lifting sounds straightforward enough. You insert the curved arm into the coil's inner diameter, attach the hook to a crane, and lift. But between that simple description and a safe, incident-free lift lies a checklist that too many operators skip. The consequences of that skip can be severe, costly, and permanent.

Understand What You Are Working With

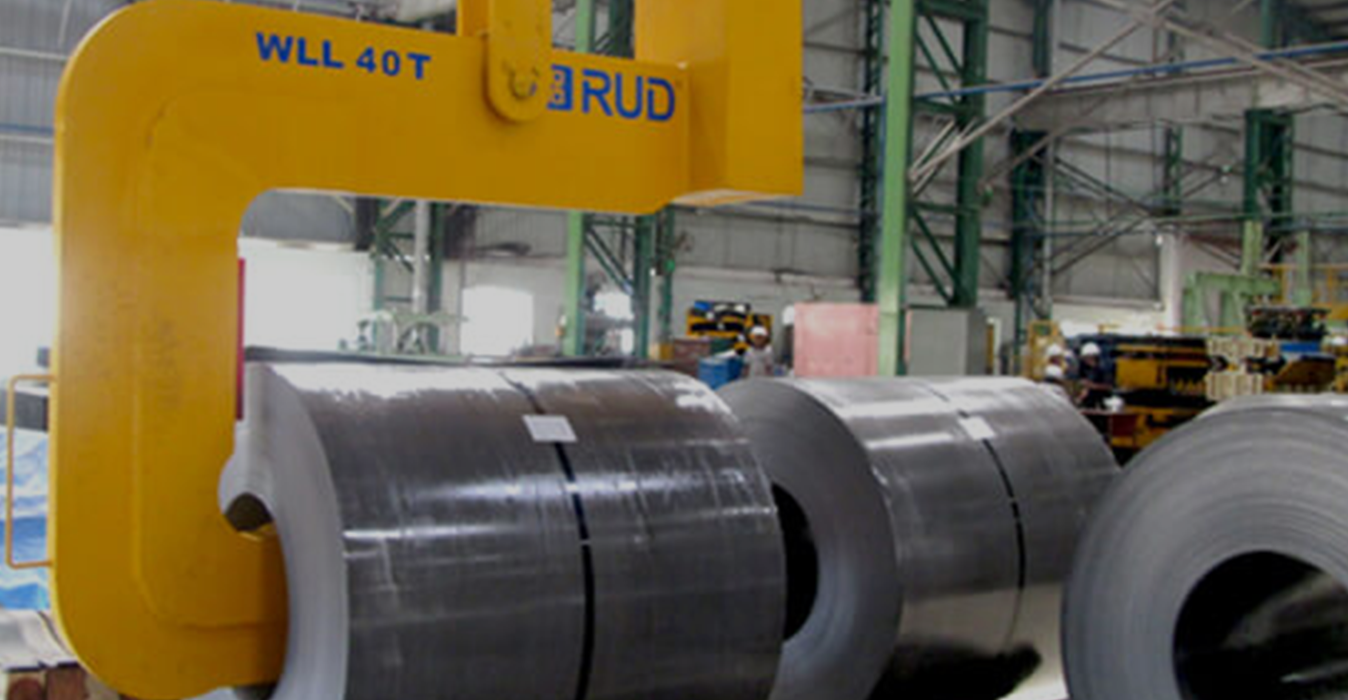

A C-Hook for coil lifting is a below-the-hook lifting device, purpose-built to cradle coils by their inner diameter. RUD India's C-Hooks, for instance, handle capacities up to 40 tonnes.They are built to DIN EN 13155 and ASME standards with capacity upto 50T, carrying a safety factor of at least 4 times the safe working load (SWL).

Before your team touches a C-Hook, every operator needs to understand these numbers. They need to know the SWL stamped on the nameplate, the self-weight of the hook itself, and the maximum coil dimensions the equipment can handle. Guesswork in industrial lifting equipment operations is not a strategy. It is a liability.

Always Inspect Before Every Lift

This is non-negotiable. Before each use, carry out a thorough visual and physical inspection of your C-Hook. Here is what to check:

• Check the elongation indicator. RUD India's C-Hooks feature a built-in elongation indicator that flags if the hook's opening has widened beyond the acceptable limit. If the indicator shows deformation, ground the equipment immediately. Do not attempt a lift.
• Inspect the lifting lug. The lifting lug takes the full load of every lift. Look for cracks, gouges, wear, or distortion. A worn lug is replaceable, and RUD India's C-Hooks are specifically designed with a replaceable lifting lug. Use that feature. Replacing a lug costs far less than replacing a worker.
• Examine the non-metallic padding. The padding at the contact area protects the coil surface and keeps the hook stable during a lift. Worn or missing padding shifts load distribution and increases slip risk. Replace padding at the first sign of significant wear.
• Verify the nameplate. Each C-Hook carries a nameplate listing the product code, SWL, self-weight, and year of manufacturing. Confirm that the hook you are about to use matches the task at hand.

Match the Hook to the Load

Never exceed the rated SWL of your C-Hook. This sounds obvious, but load miscalculation is a leading cause of heavy duty lift failures in coil handling environments. Before a lift, confirm the actual weight of the coil, not an estimate, not a number from last week's batch. The actual weight. Then verify it falls within the SWL of your C-Hook.

Beyond weight, check coil dimensions. The inner diameter of the coil must be compatible with the arm of the C-Hook. A coil with a smaller ID than the hook arm requires creates an unstable fit. A coil that is too wide can shift the centre of gravity outside safe limits. Do not assume compatibility. Measure.

For non-standard coil sizes, work with a supplier like RUD India that offers customisation. Forcing a standard hook onto a non-standard coil is an invitation to a serious incident.

Position the Coil and Hook Correctly

Correct positioning is where many coil lifting accidents begin. Follow these practices every single time:

• Centre the load. The coil's centre of gravity must align with the hook's lifting point. An off-centre coil will tilt during the lift, and a tilting coil is an unstable coil.
• Seat the hook arm fully. The arm must sit deep enough inside the coil ID to support the load. A partial insertion puts stress on the tip of the arm and dramatically increases the risk of slippage.
• Keep the crane hook centred above the C-Hook's lifting lug. Side loading a crane hook or a C-Hook creates lateral stress that neither is designed to handle.
• Clear the area before lifting. Establish an exclusion zone around the lift. Nobody should stand underneath or near a suspended coil, regardless of how routine the lift seems.

Control the Lift Carefully

Once the hook is positioned and the load is verified, control every phase of the lift with deliberate care.

Begin with a trial lift. Raise the coil just a few centimetres and pause. Observe the coil's balance, check for any movement or shifting, and confirm the hook is seated correctly. If anything looks wrong, lower the coil and correct the issue before proceeding.

Keep lift speeds slow and steady. Sudden starts and stops add dynamic load to the system, which can momentarily spike stress well beyond the SWL. On a heavy duty lift, those spikes matter.

Avoid swinging the load. A swinging coil on a C-Hook creates pendulum forces that can dislodge the hook's arm or throw the coil off balance. Travel slowly, plan your path, and stop before the load starts to swing.

Store C-Hooks Safely When Not in Use

Industrial lifting equipment has a long service life when it is stored correctly. RUD India offers an optional trolley specifically designed for C-Hook storage and transport. Use it.

Hanging a C-Hook on a random hook on the wall, leaving it on the floor, or letting it rest against a shelf damages the lifting lug, the arm, and the protective padding over time. Proper storage keeps the equipment in inspection-ready condition and makes it easier to spot damage during your pre-lift checks.

Dedicated storage also prevents unauthorised or accidental use by personnel who have not been trained on the equipment.

Train Your People, Then Train Them Again

Steel coil lifting hooks are only as safe as the operators who use them. Training is not a box to tick once during onboarding. It is an ongoing commitment.

Every operator working with a C-Hook for coil lifting needs hands-on training that covers load calculation, pre-use inspection, correct positioning, lift control, and emergency procedures. Supervisors need to reinforce safe practices during actual lifts, not just during classroom sessions.

Conduct periodic refresher training, especially when new equipment arrives or when any near-miss incident occurs. A near miss is a free lesson that most industries do not get. Take it seriously.

Keep Maintenance and Inspection Records

Document every inspection, every repair, and every replacement. A well-maintained log helps you spot patterns, such as a lug that wears out faster than expected, which may indicate an overloading problem or a positioning issue that training needs to address.

Regulatory compliance aside, records create accountability. They tell you when a piece of industrial lifting equipment last passed inspection and when it is due for the next one. They also protect your organisation in the event of an incident investigation.

Conclusion

Safe coil lifting is not about luck. It is the direct result of good equipment, consistent inspection, correct technique, and trained people working together. A C-Hook for coil lifting is one of the most effective tools available for steel coil handling, but its effectiveness depends entirely on how well you use it. Start with quality equipment that is built to certified standards. Inspect it before every lift. Match it to the load. Control the lift with patience. And keep your people trained and accountable. RUD India's C-Hooks are engineered to make that job easier, but the commitment to safety has to come from your team, every single shift.
