Ask any press shop supervisor in India about their biggest handling headache, and the answer is almost always the same: turning heavy dies. It sounds routine until you watch a crew try to rotate a 12-tonne stamping die with a chain and a crowbar. That improvisation is where injuries happen, where tools get damaged, and where production schedules quietly fall apart. Machine tool movers were built to take that problem off the floor entirely. This article covers what they actually do inside a plant, where the safety gains come from, and why facilities running heavy tooling cannot afford to keep handling it the old way.
Heavy dies and injection molds do not come with handles. Rotating one requires either the right equipment or a risky workaround, and most facilities that have not invested in a dedicated tool mover default to the workaround.
That workaround looks different in every shop. Sometimes it is a crane sling rigged at an improvised angle. Sometimes it is workers physically pushing against a load that outweighs them by two hundred times. None of these methods control where the load actually rotates. And a load that does not rotate around its own centre of gravity swings. At ten or fifteen tonnes, that swing does not stop politely.
The injury risk is obvious. Less obvious is the tool damage. A stamping die or a press mold that gets scratched, chipped, or deformed during a rough manual turn needs rework before it goes back into production. That rework has a cost. It also has a lead time, and that lead time hits production schedules directly.

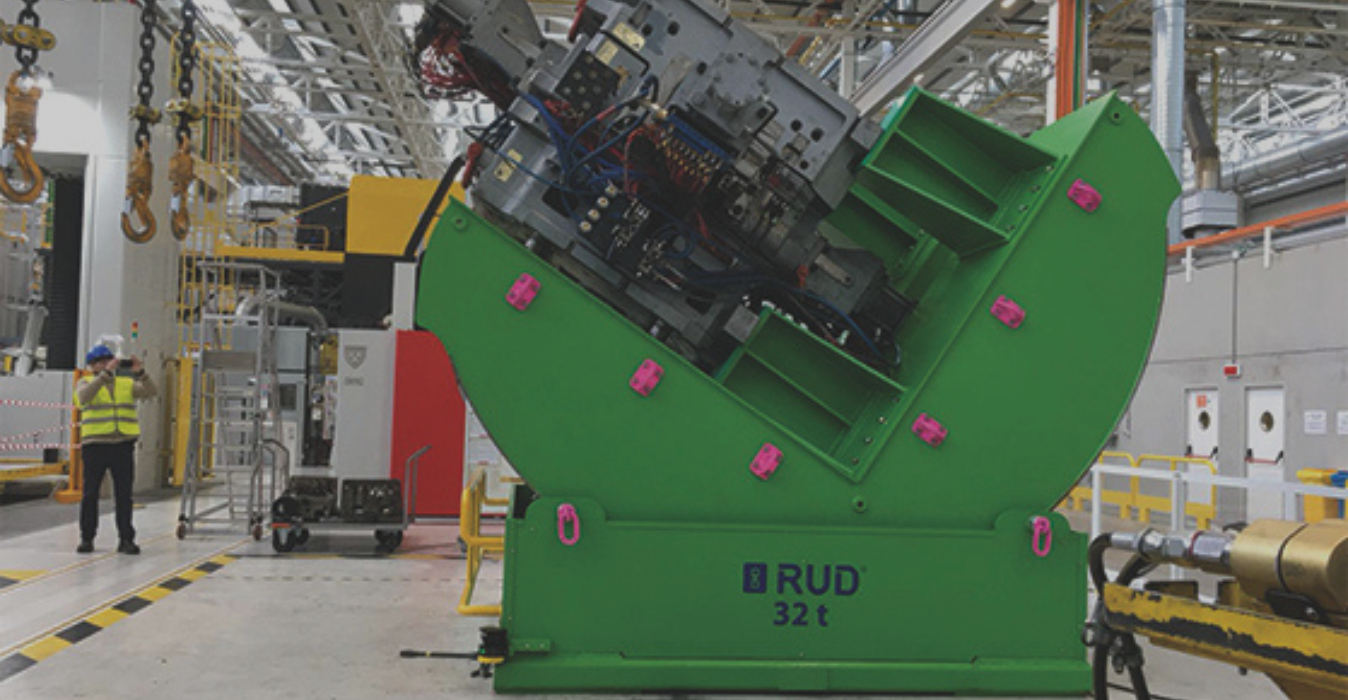

RUD India's TECDOS Tool Mover is designed for one specific job: turning and tilting heavy tools and molds in a controlled, repeatable way. It handles loads starting at 6.3 metric tonnes, going up through 10, 16, 20, 32, and 64 metric tonnes. Table sizes scale with capacity, reaching 3.5 x 3.5 x 2.5 metres at the top end.
The core of the design is centre-of-gravity rotation. The table turns the tool around its own gravitational centre, which means the load does not swing, tip, or generate lateral forces during the rotation. It simply turns, smoothly, under full operator control.
A frequency-controlled drive handles the actual movement. Acceleration is gradual. Deceleration is gradual. There is no jolt at start-up, no sudden stop that throws an unsecured load off balance. One operator manages everything with a hand-held pendant. The rotation stops and locks at any position in the arc. Clean the tool, inspect a face, prep a surface, then continue the rotation when ready.
That level of control is simply not achievable with manual methods. Not even close.
The TECDOS is not just a turning table. Several specific design choices matter from a safety standpoint.
The audible siren activates automatically whenever the table operates. Personnel nearby get a clear, unmistakable signal to stay out of the rotation zone. This is standard on every unit, not an optional extra.
The emergency stop on the control pendant cuts the drive instantly and holds the table position. If something looks wrong mid-rotation, the operator stops it right there. The tool stays locked at that angle until the operator decides to proceed.
Polyurethane surface plates on the table protect the tool face during loading and rotation. They also prevent the tool from sliding on the table surface at the start of a lift, which is a point where unsecured loads tend to shift unexpectedly.
The platform sits at a deliberately low working height. Workers loading the tool and cleaning it in position do not need to climb or stretch over the table edge. That low height seems like a minor detail until you consider how many handling injuries happen at exactly that awkward reach.
Most floor-mounted tool handling equipment stays in one place. The tooling comes to it. That means every trip a heavy die makes across the production floor is a handling event, a crane lift, a transport run, a repositioning, each one a potential incident.
The TECDOS does not bolt to the floor. It moves. Crane lifting points and fork pockets are built into the unit. Take it to the press line, use it, move it to the maintenance bay, use it again. The machine follows the work.
In automotive manufacturing, where die changeovers happen on tight schedules and tools circulate constantly between press stations and tool rooms, this matters. Fewer tool transports across the plant floor means fewer opportunities for something to go wrong during the move.
The TECDOS fits well beyond automotive. Metal stamping shops, foundries, aerospace suppliers, and any facility maintaining large press tooling all share the same underlying problem: heavy tools that need controlled turning and do not get it with current equipment.
For shops with limited floor space, the portability is an additional argument. No dedicated pit, no permanent installation, no floor modifications. Park it where the job is, then move it when done. That flexibility matters in Indian facilities where floor space is tight and production layouts change regularly.
RUD India configures each TECDOS unit based on the actual tool dimensions and weight requirements of the customer's operation. The starting point is always the specific application, not a generic catalogue specification.
Replacing manual tool turning with a purpose-built machine tool mover is one of the more straightforward safety investments a manufacturing plant can make. The risk in manual handling is not hidden or theoretical. It shows up in injury reports, tool damage records, and unplanned downtime figures. The TECDOS Tool Mover from RUD India addresses that risk directly, through controlled centre-of-gravity rotation, a frequency-managed drive, and a portable design that works across an entire facility rather than a single fixed station. For plant managers and EHS teams looking for a concrete improvement in tool handling safety, the TECDOS is the right piece of industrial handling equipment for the job.
