Lifto Roto Beam

Tecdos

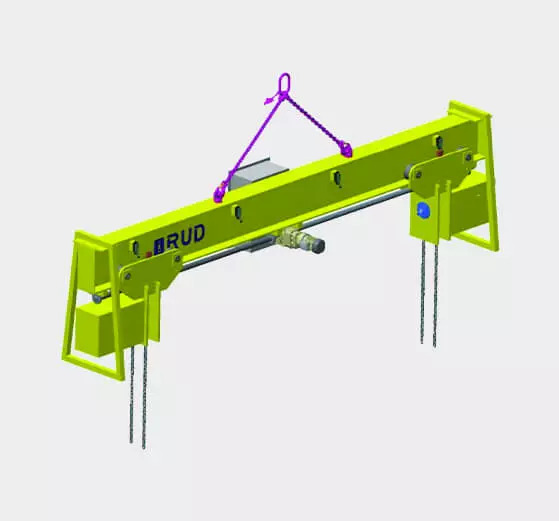

Lifto Roto Beam

RUD India’s Lifto Roto Beam can be used for lifting as well as tilting. Lifto Roto Beam ensures smooth rotating operation, which helps in crane safety avoiding the angular lift in conventional method of tilting using chain sling

  • Higher Grade Chain Mechanism-TECDOS Chains used
  • Specially designed for lifting and tilting of load
  • With chain drive system and RUD-TECDOS wheel, no slip occurs between relevant component (chain and pocket wheel)while tilting
  • With the help of center gear motor, span adjusted as per requirement with synchronized trolley for inward and outward movement

Category : Lifting Products

Sub Category : Tecdos

  • Description
  • Technical Details

Description

RUD India’s Lifto Roto Beam is a versatile load turning device and load lifting machine designed to handle both vertical lifts and precise beam tilt operations in one integrated system. As lifting equipment, it combines a synchronized trolley with RUD’s patented TECDOS chain drive to deliver smooth rotation and tilting, eliminating the risks of angular lifts with conventional chain slings. Whether you need to invert heavy assemblies or rotate load-bearing components, the Lifto Roto Beam streamlines every step of your material-handling workflow.

Key Features & Benefits

  • Dual Function Load Turning Device
    Seamlessly switch between straight lifts and rotational movements. The center gear motor synchronizes inward and outward trolley travel, allowing you to hold the load at any angle for inspection or assembly.
  • High-Grade TECDOS Chain Mechanism
    RUD TECDOS chains and pocket wheels mesh without slip, ensuring consistent performance under full capacity. Chains are grade-100 alloy for maximum durability.
  • Robust Safety Measures
    Engineered to DIN EN standards and 100% electromagnetic crack detection tested. Dual limit switches plus mechanical stoppers prevent over-travel and secure your load even if one safety system fails.
  • Capacity Up to 50 Ton
    Rated WLL up to 50 ton, this lifting beam solution is ideal for steel fabrication, shipbuilding, power-plant maintenance and other heavy-duty applications.
  • User-Friendly Controls
    Pendant-operated push-button control for lift, rotate and trolley functions reduces setup time and minimizes operator error.
  • Low-Maintenance Design
    Sealed bearings and lubricated drive components extend service intervals. Easy access to chain pockets and gear assemblies makes inspections and part replacements fast and safe.

Applications Across Industries

  • Steel Fabrication: Rotate large plates or beams for welding and cutting without extra rigging.
  • Shipbuilding: Tilt hull sections and engine blocks for access to weld seams or inspection points.
  • Power Generation: Handle turbine casings, stators and rotors with precision to keep critical components aligned.
  • Heavy Machinery Assembly: Position castings, frames and subassemblies at any angle for bolting or machining operations.

Why Choose RUD India’s Lifto Roto Beam?

  1. Reduce crane moves, minimizing cycle times and fuel costs.
  2. Enhance operator safety with redundant lockouts and real-time angle monitoring.
  3. Cut rigging complexity by eliminating the need for multiple slings or brackets.
  4. Boost uptime with easy maintenance and rapid field servicing.

Get Started Today

Specify your beam dimensions and load requirements, and our application engineers will tailor the Lifto Roto Beam configuration to suit your needs. From on-site trials to full installation support, RUD India delivers the lifting equipment you need, when you need it.

Technical Specifications

  • Working Load Limit (WLL): Up to 50 ton
  • Rotation & Tilt Capacity: 0° to 360° continuous rotation
  • Chain Type: RUD TECDOS grade 100
  • Drive System: Center gear motor with synchronized trolley
  • Control: Pendant station with emergency stop
  • Safety: Dual limit switches plus mechanical stopper
  • Standards: DIN EN certified, electromagnetic crack detection
  • Operating Temperature Range: –20 °C to +60 °C

Technical Details

  • Design as per din en 13155 std
  • 100% Electro magnetic crack detected
  • Capacity WLL - up to 50 ton
  • Extra limit switch provided for secondary safety of trolley to stop
  • Additional Mechanical stopper provided in case both the limit switches fail for added safety
  • Job can be held at any angle during the tilting operation
  • Used RUD grade 100 chain components on top of the beam
  • User friendly operation and maintenance
  • Pendant used for operation of LRB
